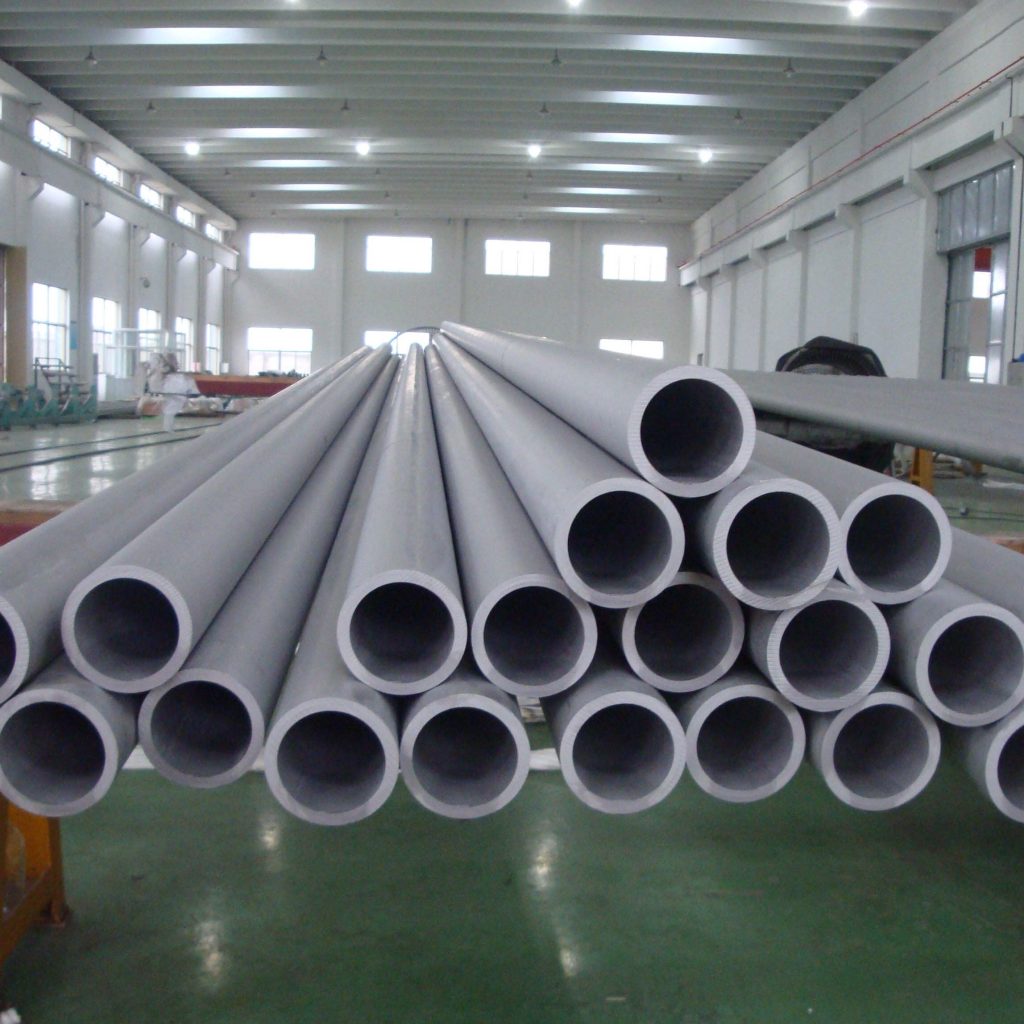

Stainless Steel AP Pipe
Used in chemical processing, oil and gas, food and beverage, pharmaceuticals, power plants, and marine applications. Its smooth, scale-free surface ensures corrosion resistance, high strength, and reliability in transporting fluids and gases under high pressure and harsh environments.
PROPERTIES, and CHEMICAL COMPOSITION
– Production: Cold drawing
– Surface Treatment: Annealing and Pickled(AP)
– Material: 304/304L, 316/316L, 321, 347, 309S, 310S, 31803, 32750, 904L
– Standard: ASTM A269, A312, A213, EN10216-5, DIN 17458, ISO 1127, NACE MR0175, ASTM B163, B165, etc.
– Size: OD 6 to 325 mm, WT: 1 to 20 mm
– Advantages: It offers better corrosion resistance, improved weldability, and higher strength and requires no additional cleaning. Unlike BA tubing, it’s ideal for high-stress industrial applications like chemical processing, oil & gas, and power plants, rather than aesthetic or decorative uses.
| C | Mn | Mn | S | Si | Ni | Cr | Mo | |
| Min. | – | – | – | – | – | 10.00 | 16.00 | 2.00 |
| Max. | 0.035 | 2.00 | 0.040 | 0.030 | 1.00 | 14.00 | 18.00 | 3.00 |
| C | Mn | Mn | S | Si | Ni | Cr | Mo | |
| Min. | – | – | – | – | – | 8.00 | 18.00 | – |
| Max. | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 12.00 | 20.00 | – |
| Y.S.psi/(MPa) | T.S.psi/(MPa) | EL. | HRB | Flattening | Flaring | Grain Size | Hydrostatic | I.C. | E.T. | U.T. |
| 0.2%Min.205 | Min. 515 | Min.35% | Max. 90 | Test | Test | Test | Test | Test | Test | Test |
| Y.S.psi/(MPa) | T.S.psi/(MPa) | EL. | HRB | Flattening | Flaring | Grain Size | Hydrostatic | I.C. | E.T. | U.T. |
| 0.2%Min.170 | Min. 485 | Min.35% | Max. 90 | Test | Test | Test | Test | Test | Test | Test |

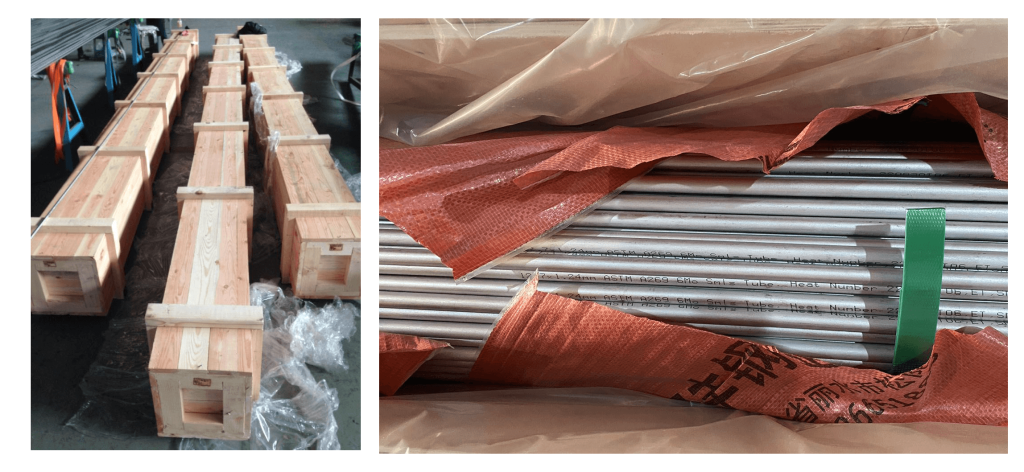

Standard Packing
